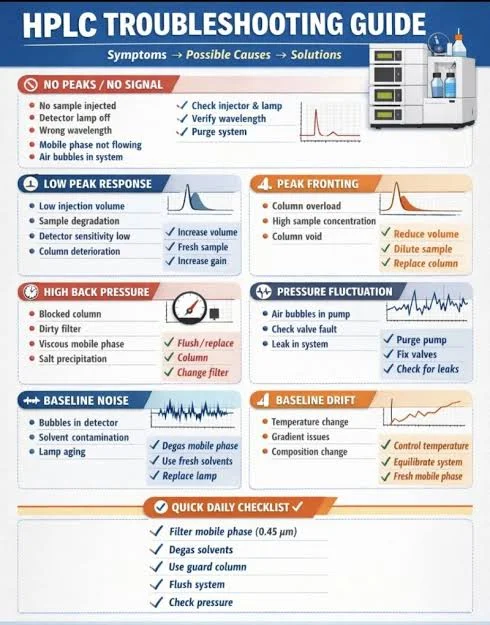

HPLC Method Development Troubleshooting: Common Problems, Root Causes and Practical Solutions
HPLC method development is an important part of pharmaceutical analytical development because the quality of the analytical method directly affects the reliability of assay, related substances, dissolution, and other testing results. During method development, analysts commonly face problems such as poor peak shape, low retention, excessive retention, peak splitting, co-elution, low recovery, unstable baseline, carryover, and inadequate sensitivity. These problems are usually not solved by randomly changing chromatographic conditions. A systematic troubleshooting approach helps identify the actual root cause and produces a robust HPLC method.
This article explains common HPLC method development troubleshooting problems, their possible causes, and practical solutions with pharmaceutical examples.
What Is HPLC Method Development Troubleshooting?
HPLC troubleshooting during method development is the systematic investigation of chromatographic problems to identify their root cause and establish suitable analytical conditions. The main parameters normally evaluated include column chemistry, mobile-phase composition, pH, buffer concentration, organic solvent, flow rate, column temperature, injection volume, sample concentration, diluent, wavelength, and gradient conditions.
A good troubleshooting approach should focus on one variable at a time whenever possible. If several parameters are changed simultaneously, it becomes difficult to understand which change actually solved the problem.
1. Poor Peak Shape or Tailing
Peak tailing is one of the most common problems encountered during HPLC method development. A symmetrical peak is generally preferred because it provides better integration and reproducibility.
For example, suppose an API produces a tailing factor of 2.2 on a C18 column. The first step should be to investigate the chemical properties of the API. Basic compounds can interact with residual silanol groups on silica-based stationary phases and produce tailing.
Possible causes include inappropriate mobile-phase pH, secondary interaction with the stationary phase, unsuitable column chemistry, overloaded injection, contaminated column, and inappropriate buffer concentration.
One practical approach is to optimize the mobile-phase pH. If the compound is basic, adjusting the pH so that the analyte is sufficiently ionized may reduce secondary interaction. A different C18 chemistry or a more suitable stationary phase can also improve peak shape.
Sample overload should also be checked. If the sample concentration or injection volume is excessively high, reducing the injection amount may improve peak symmetry.
2. Peak Fronting
Peak fronting is generally associated with column overload, although other causes can also contribute.
For example, an assay method is developed with a sample concentration of 2 mg/mL and the API peak shows significant fronting. Reducing the concentration to 1 mg/mL and injection volume may improve the peak shape.
Column contamination or poor packing can also contribute to abnormal peak shapes. Therefore, the analyst should first determine whether the problem is related to the sample concentration or the chromatographic system.
3. Peak Splitting
Peak splitting can make integration difficult and may result in poor assay or impurity quantification.
Common causes include poor sample solubility, incompatible sample diluent, column voids, incorrect column installation, damaged frits, and differences between the sample solvent and mobile phase.
For example, if the mobile phase is predominantly aqueous but the sample is prepared in 100% methanol, injection of a relatively large volume may disturb the chromatographic process and produce abnormal peak shape or splitting.
A suitable diluent should have adequate solubility for the analyte while remaining reasonably compatible with the initial mobile-phase conditions.
Column installation should also be checked. Incorrectly installed columns or damaged column connections can create dead spaces that produce distorted peaks.
4. Low Retention Time
Sometimes the analyte elutes very close to the solvent front. This can make separation from matrix components and early-eluting impurities difficult.
Suppose a polar API gives a retention time of only 1.5 minutes on a C18 column using a mobile phase containing 80% organic solvent. Reducing the organic content may increase retention.
In reversed-phase HPLC, increasing the aqueous proportion generally increases retention of many moderately polar compounds, while increasing organic solvent generally decreases retention.
For example, if the initial condition is water:methanol 20:80, changing it to 50:50 may provide significantly greater retention. However, the final condition should be selected based on resolution, peak shape, analysis time, and method robustness rather than retention time alone.
5. Excessive Retention Time
Excessive retention increases the total run time and reduces laboratory productivity.
Suppose an API has a retention time of 35 minutes under an isocratic condition. Increasing the organic solvent percentage can reduce retention. Column temperature and mobile-phase composition can also be optimized.
Gradient elution is another useful approach when the sample contains compounds with a wide range of polarities. A gradient can provide early elution of polar components while allowing strongly retained compounds to elute later.
The objective should not simply be the shortest possible run time. Adequate resolution and reproducibility must be maintained.
6. Co-Elution of API and Impurity
Co-elution is a major method-development challenge, particularly for related-substance methods.
For example, an API peak elutes at 10.2 minutes and a process impurity elutes at 10.3 minutes, giving inadequate resolution. Simply changing the flow rate may not provide sufficient improvement.
The analyst can investigate mobile-phase composition, pH, column chemistry, temperature, and gradient profile. Switching from one C18 column to another with different selectivity can sometimes provide a significant improvement.
For example, two C18 columns may have similar dimensions but different surface chemistry and therefore different selectivity. If changing the organic solvent does not adequately separate the peaks, screening another stationary-phase chemistry can be more effective.
7. Poor Resolution Between Two Peaks
Resolution depends on efficiency, retention, and selectivity. Therefore, poor resolution should be investigated systematically.
If two peaks are closely eluting, first evaluate whether changing the organic solvent from acetonitrile to methanol or vice versa changes selectivity. Mobile-phase pH can be especially important for ionizable compounds.
Column temperature may also influence selectivity. A small temperature change can sometimes improve separation, although excessive temperature changes should be avoided unless scientifically justified.
Gradient slope is another important parameter in gradient methods. A slower gradient around the critical separation region may improve resolution.
8. High Back Pressure
Increasing column back pressure can indicate a blockage or precipitation.
For example, a method uses a phosphate buffer and the mobile phase is mixed with organic solvent. If the buffer concentration or organic composition causes precipitation, particles can block the column inlet frit.
Mobile phases containing buffers should be properly prepared, filtered where appropriate, and checked for compatibility between aqueous and organic components.
If pressure suddenly increases, the analyst should check the guard column, inlet frit, tubing, filter, and column. If pressure gradually increases during multiple injections, sample matrix contamination may be responsible.
9. Baseline Noise and Drift
Baseline instability can negatively affect integration and sensitivity.
Common causes include air bubbles, contaminated mobile phase, detector problems, insufficient equilibration, temperature fluctuations, and inappropriate solvent mixing.
For example, in gradient HPLC, baseline drift can occur because the detector responds differently to changes in mobile-phase composition. Using suitable solvents and allowing adequate equilibration can minimize such effects.
The mobile phase should be freshly prepared when required and should be properly degassed according to the laboratory procedure.
10. Ghost Peaks and Carryover
Ghost peaks are unexpected peaks that appear even when the sample does not contain the corresponding component. Carryover occurs when material from a previous injection remains in the system and appears in subsequent injections.
For example, a high-concentration sample is injected followed by a blank, and the blank shows a peak at the API retention time. This indicates possible carryover.
The analyst should investigate the autosampler needle, injection port, tubing, column, detector cell, and sample preparation.
A stronger needle-wash solution may be required. However, the wash solvent should be chemically compatible with the analyte and chromatographic system.
11. Low Recovery During Sample Preparation
Sometimes chromatographic separation is acceptable, but assay recovery is unexpectedly low.
For example, the theoretical assay is 100%, but the measured result is approximately 95%. Before changing the chromatographic conditions, sample preparation should be investigated.
Possible causes include incomplete extraction, poor API solubility, adsorption, degradation, inappropriate shaking time, filtration losses, or unsuitable diluent.
A recovery experiment can be performed by spiking known quantities of API into placebo and comparing the measured recovery.
For poorly soluble compounds, the analyst may need to investigate solvent composition, extraction technique, sonication time, shaking conditions, dilution procedure, and filtration compatibility.
12. Sample and Standard Results Are Not Comparable
If the standard gives excellent peak shape but the sample gives an abnormal peak, the problem may be sample matrix or sample preparation rather than the HPLC system.
For example, the standard prepared in methanol gives a symmetrical peak, while the tablet sample prepared in a methanol-water mixture gives tailing and additional peaks.
This situation suggests that excipients or sample preparation conditions may be influencing chromatography.
Placebo interference, extraction solvent, filtration, sample concentration, and solution stability should therefore be investigated.
13. Low Sensitivity or Poor Response
Low detector response may result from an unsuitable wavelength, low analyte concentration, degradation, adsorption, or detector-related problems.
During method development, the UV spectrum of the analyte should be evaluated to identify a suitable wavelength. However, maximum absorbance is not always the only consideration. Selectivity, baseline stability, and impurity response should also be considered.
For example, if an API shows maximum absorbance at 225 nm but significant placebo interference occurs at that wavelength, a slightly higher wavelength may provide better selectivity.
14. Example of Complete HPLC Troubleshooting
Consider a pharmaceutical related-substance method where the API peak shows a tailing factor of 2.1 and two impurities are not adequately separated.
The initial method uses a C18 column, phosphate buffer, and acetonitrile. Instead of changing everything simultaneously, the analyst evaluates the parameters sequentially.
First, the sample concentration and injection volume are checked to exclude column overload. Next, mobile-phase pH is evaluated because the API is ionizable. A small pH adjustment improves peak symmetry.
However, the two impurities remain unresolved. The organic modifier is then screened. Methanol provides better selectivity than acetonitrile, improving the separation.
Finally, the gradient profile is optimized around the critical pair. The final method provides acceptable peak shape, adequate resolution, reasonable retention time, and reproducible system suitability.
This example demonstrates an important principle: HPLC troubleshooting should be based on root-cause investigation rather than random trial and error.
15. Practical HPLC Troubleshooting Sequence
When an HPLC method does not perform as expected, the following sequence is useful:
First, verify the instrument and system suitability. Check pressure, leaks, mobile-phase flow, detector response, autosampler performance, and column condition.
Second, verify the mobile phase. Check composition, pH, buffer preparation, filtration, degassing, and compatibility.
Third, evaluate the column. Check column dimensions, stationary-phase chemistry, age, storage condition, pressure, and contamination.
Fourth, investigate sample preparation. Check solubility, extraction efficiency, concentration, diluent, filtration, and solution stability.
Finally, optimize chromatographic parameters such as pH, organic composition, flow rate, temperature, injection volume, and gradient conditions.
HPLC method development troubleshooting is a systematic scientific process rather than a simple trial-and-error activity. Problems such as peak tailing, fronting, splitting, low retention, excessive retention, poor resolution, baseline instability, carryover, and low recovery can generally be investigated by evaluating the column, mobile phase, analyte properties, sample preparation, and instrument conditions.
A robust method should provide adequate specificity, precision, accuracy, sensitivity, resolution, and reproducibility while remaining practical for routine laboratory use. The most effective HPLC method-development strategy is to understand the chemical properties of the analyte, identify the likely root cause of the problem, change one important parameter at a time, and document the scientific rationale for every optimization.
For pharmaceutical analysts, this approach not only improves method performance but also makes subsequent method validation, transfer, stability testing, and routine quality-control analysis more reliable.
Frequently Asked Questions
1. What is the most common HPLC method development problem?
Peak tailing, poor resolution, retention-time variation, and inadequate sensitivity are among the most common problems.
2. Why does HPLC peak tailing occur?
It can occur because of secondary interactions, unsuitable pH, column chemistry, contamination, or sample overload.
3. How can HPLC peak tailing be reduced?
Optimize pH, select suitable column chemistry, reduce sample loading, and ensure the column and mobile phase are appropriate.
4. Why do two HPLC peaks co-elute?
Co-elution generally occurs because the chromatographic conditions do not provide sufficient selectivity or retention differences.
5. How can HPLC resolution be improved?
Resolution can be improved by optimizing mobile-phase composition, pH, gradient conditions, temperature, flow rate, and column chemistry.
6. Why is the HPLC retention time too short?
Excessive organic solvent or unsuitable stationary-phase conditions can cause very low retention.
7. Why is HPLC pressure increasing?
Column blockage, particulate matter, precipitation, contaminated samples, or blocked filters can cause increased pressure.
8. What causes HPLC baseline drift?
Mobile-phase composition changes, temperature variation, insufficient equilibration, contaminated solvents, and detector issues can cause baseline drift.
9. Why is HPLC recovery low?
Incomplete extraction, adsorption, degradation, filtration loss, poor solubility, or unsuitable sample preparation can cause low recovery.
10. What is the best approach to HPLC troubleshooting?
Identify the likely root cause, evaluate one parameter at a time, confirm the effect experimentally, and document the scientific justification.
